2nd Generation 200-300Ft Wireless Range Backup Camera for Trucks, Fleets. HD, 7inch LCD

2nd Generation Wireless Backup Camera Backup Any Vehicle Easily and Safely!

• 1 to 4 Cameras: Choose to add up to 4 wireless cameras that can pair to the same monitor simultaneously, 720P equivalent video resolution and 120 wide angle camera viewpoint
• Wireless Signal: Camera offers up to 300' wireless range, compatible with any truck/trailer system, even oversized trailers 100+ feet
• Night Vision: camera offers 20 IR lights for excellent viewing at night, up to 40 feet of visibility in pitch black settings
• Heavy Duty: Weatherproof & waterproof commercial grade IP68IR camera can stand up to any environment or industry
• LCD Monitor: 7" LCD screen with excellent video resolution, displaying a bright/clear video feed of 1 camera at full screen, up to 4 cams in split screen
• DVR Recording Available: (Optional) Add DVR capabilities that can record all camera viewpoints on an full size SD card up to 128GB. Once the SD card is full, the DVR will loop record, replacing old video footage with new footage

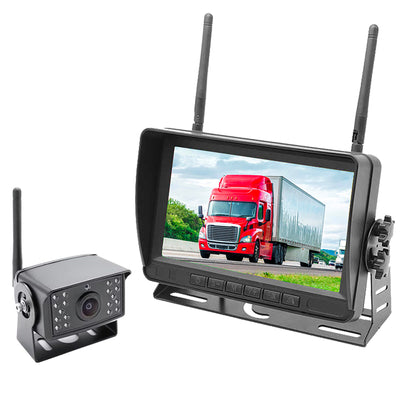

The 2nd Generation Wireless Backup Camera System's 7" LCD monitor includes a dash mount & heavy duty windshield suction cup mount, to give you multiple install options. To power the monitor, you are given a  DC charger, or you can hardwire the monitor into 12 volt power behind dashboard.

The IP68 heavy duty, commercial grade wireless camera can be installed up to 300 feet from the LCD monitor, with a strong wireless signal. This camera includes night vision IR lights that will illuminate at night, giving the driver good visibility. To power the camera, you will tap/piggyback the camera into a 12-24V power source close to where you install the camera (the camera requires power for the transmitter to transmit the wireless signal and to power the 20 IR lights). If you want a portable camera and/or do not want to install to 12-24V power source, you can add a portable weatherproof heavy duty battery during checkout that can power the camera. Once the camera has power, the camera will transmit the high quality video to the monitor.

This camera is commercial grade heavy duty in design and can be installed outside or inside and stand up over time in any environment, industry or weather. This backup system is designed for trucks, commercial trucks, RVs, buses, and other vehicles.

The Safety Benefits of using a Backup Camera System:

• Backup Efficiency: Allows you to see what is behind or in front of you during reverse or at all times
• Blindspot Reduction: Improved visibility with 120° views from each camera
• Night Vision: Night driving visibility of up to 40 feet
• Reduce Accidents: Reduce the chances of a collision when backing up your vehicle by up to 75%

Install this system in the way that fits your needs–as quickly as 10 minutes!

1. Install the LCD Monitor

Choose a location for the Monitor, then install use the Windshield Suction Cup Mount, or the 3M Adhesive Tape to attach the Monitor's Bracket to your dashboard. Power the Monitor by plugging in the Cigarette Lighter Power Adaptor or using the Hardwire Kit.

2. Install the Heavy Duty Camera(s)

We recommend adding the All-In-One Battery and Magnetic Mount for each Camera when purchasing this product. This add-on allows you to power the camera easily and mount in locations that don't have to be permanent. Alternatively, you can mount the Cameras using the Screws, and supply power with Hardwire Kit.

3. Pair and Use

Once the Monitor and Cameras are powered on, pair each Camera using the Monitor. Adjust the system settings to your liking, then the 2nd Generation Wireless Backup Camera System will be ready to use each time you drive!

This product gets FREE USPS Priority 1-3 Day Shipping!

Camera Specs:

• Imaging Sensor: CCD
• CCD Resolution: 800 TV Lines (720P equivalent)
• Minimum Illumination: 0 Lux
• Shockproof: 10G
• Number of Pixels: 2 Million Pixels
• Transmission Frequency: ISM Digital
• Transmission Power: 10mW/CE; 2mW/FCC
• Modulation Type: FM
• IR Night Range: 20 to 40 ft
• Bandwidth: 18 MHz
• Waterproof: IP68
• Power Supply: + 12V or 24V DC
• Consumption Current (Max.): 230mA
• Horizontal View Angle: 120 Degrees
• Unobstructed Effective Range: 200-300 Feet
• Dimensions (W x D x H): 3.75 x 2 x 2.5 inches (excluding bracket)
• Weight: 15.5 oz
• Operating Temperature: -30°F/150°F
• Operating Humidity: 85% RH

Power Cable Lengths of LCD's and Cameras:

• Length of cable between LCD to power source:  14" & 1/2 fixed cable
• Does this product grid lines: yes
• 75" 12 volt DC charger included
• Length of power cable camera: 16" fixed cable, 76" hardwire power cable

Monitor/Receiver Specs:

• LCD Resolution: 1024 x 600 pixels
• Receiving Frequency: ISM Digital
• Intermediate Frequency: 480 MHz
• Demodulation Type: FM
• Antenna: 50 ohm SMA
• Receiving Sensitivity: <= -85 dBm
• Video Output Signal Level: 1 .1 V +/- 0.2V~ @75ohm, S/N>38dB
• Power Supply: + 12/36 V DC
• Consumption Current (Max.): 600mA
• Unobstructed Effective Range: 200-250 Feet
• Dimensions (W x D x H): 8.5 x 1 x 6 inches
• Weight: 14 oz (excluding bracket)
• Operating Temperature: -10°C/+50°C or+14°F/122°F
• Operating Humidity: 85% RH
• On-Screen Grid Lines: yes

Every 2nd Generation Wireless Backup Camera System includes these components:

• 7” LCD Monitor with Built-in Digital Receiver and Sun Shield
• Wireless IP68 Heavy Duty Bracket CCD Camera (Choose 1 to 4)
• Cigarette Lighter Power Adapter for Monitor
• 12V Power Cable for Monitor (if you choose to hardwire)
• Dash Mount Holder for Monitor
• Windshield Suction Cup Mount for Monitor
• Remote Control
• Video Cable, Screws, Wire Connectors

• User Manual
• Rechargable Weatherproof Camera Battery (Optional, Choose 1 to 4)
• Magnetic Camera Mounts (Optional, Choose 1 to 4)

• Magnet Mount for Camera: Magnet Mount allows for 1 minute installation & allows for each removal and install if you change trailers often. Click HERE

• Rechargeable Weatherproof Battery:  If you do not want to connect the wireless camera to a 12V power source or simply can not, you can add our Rechargeable Battery to make installation quick and camera & battery pack can be portable.  Click HERE.

View Instruction Manual >

View Instructional Product Videos >

Product/ Product Page Overview:

How to Wire and Power Your Device:
 

What's In The Box Video:
 

Product Disclaimer: This system is designed to be an aid and should not replace the need to drive carefully. Under no circumstances will manufacturer, supplier or retailer accept any responsibility or cannot be held liable for any direct or indirect, incidental or consequential damage or for injuries results from installing or using this system or from any backing accident.
