2nd Generation 200-300Ft Wireless Range Backup Camera for Trucks, Fleets. HD, 7inch LCD

Save $ 78.00
Original price $ 349.97
Current price $271.97 $349.97
SKU HDE-1025

Availability: In Stock

200-300 Ft Wireless Range. 2nd Generation Wireless Backup Camera with 7inch LCD. Great for truck drivers, owner operators and fleets.

  • Digital Wireless Signal Wireless: Camera offers 200 to 300 foot wireless range! Can work with any truck/trailer system, even oversized trailers with 100+ trailers
  • Quality View Screen: 7" LCD with excellent video resolution with bright/clear video
  • Add up to 2 Cameras: Can add up to 2 wireless cameras that can pair to the same 7" LCD at the same time (includes 1 camera, can add up to 1 additional cameras during checkout process)
  • Display 1/2 Cams on LCD: Can display 1 camera at full screen, 2 cams in split screen
  • Quality View Screen: Excellent video resolution with bright/clear video
  • Multiple Uses: Works with trucks, equipment and vehicles of any type. This cam allows you to see what is behind or in front of you during reverse or at all times!
  • High Resolution Camera: Clear Wireless camera with 720P equivalent video resolution and 120 wide angle camera viewpoint
  • Simple to use: Easy Installation, 10-45 Minute Install
  • Night Vision: Wireless Camera offers 20 IR lights for excellent viewing at night! 35-40 feet visibility in pitch black settings
  • Heavy Duty: Weatherproof & Waterproof Commercial Grade IP68IR Camera can stand up to any environment or industry
  • DVR Recording Available: Can add a DVR that can record 1-4 viewpoints on an Full Size SD card up to 128GB. Once the Full Size SD card is full, the DVR will loop record, deleting old video with new video. Add DVR for $40 if upon checkout if you want to add this DVR
  • Portable, 1 minute installation Camera available: Want to have a camera that you can install in les than 1 minute and have the ability to more from location to location in seconds? Add the portable weatherproof 10-12 Hr rechargeable battery and 2 magnets (1 for camera, one for battery), and you can have a portable camera that can move from location to location and can be installed in seconds
  • Safety and Security: Reduce Backup Accidents by 70% or more
  • Any View: See what is behind your vehicle at all times (or in front, depending upon where you install the camera)
  • FREE Shipping: We ship all orders out USPS Priority, 1-3 Day shipping
  • 30 Day Money Back Guarantee: Not sure if this is the camera for you, CHECK it out for 30 days to make sure!

Need more than 2 wireless cameras? Click HERE for our 2-4 Wireless cam system

PRODUCT/PRODUCT PAGE OVERVIEW

What's in the Box?


7" LCD Monitor
7" LCD includes a dash mount & heavy duty windshield suction cup mount, that gives you multiple options to install LCD. LCD includes a DC cig lighter charger to power unit, or you can hard wire system into 12 volt power behind dash. When the camera powers on, the LCD will display what is behind the vehicle. This camera includes night vision LED lights that will illuminate at night giving the driver good visibility at night. This truck reversing camera system is designed for trucks, commercial trucks, RVs buses and more

Digital Wireless HD Camera
The IP68 Heavy Duty Commercial Grade Wireless camera can be installed 200-300 feet from the LCD and will send the wireless signal to the LCD receiver. Once the camera and LCD has power, the LCD will automatically display the camera! To power the camera, you will tap/piggy back the camera into a 12-24v power source close to where you install the camera (the camera requires power for the transmitter to transmit the wireless signal and to power the 20 IR lights). If you want a portable camera and/or do not want to install to 12-24v power source, you can add a portable weatherproof heavy duty battery during checkout that can power the camera. Once the camera has power, the camera will transmit the high quality video to the LCD to up to 300 feet to the LCD and you will not have any wires between the LCD and camera. This camera is commercial grade heavy duty in design and can be installed outside or inside and stand up over time in any environment, industry or weather.

If you are looking for the best wireless commercial grade wireless camera system with 1 to 4 cameras, this system is for you! We have customers that use this for tractor/trailer installations, equipment installations, forklift installations, tow truck, Agri/farming equipment, car haulers, trucks with boats/RV's and much more!

CCD Camera/Transmitter Specs:

  • Imaging Sensor: CCD
  • CCD Resolution: 800 TV Lines (720P equivalent)
  • Minimum Illumination: 0 Lux
  • Shockproof: 10G
  • Number of Pixels: 2 Million Pixel
  • Transmission Frequency: ISM Digital
  • Transmission Power: 10mW/CE; 2mW/FCC
  • Modulation Type: FM
  • IR Night Range: 20 to 40 ft
  • Bandwidth: 18 MHz
  • Waterproof: IP68
  • Power Supply: + 12V or 24V DC
  • Consumption Current (Max.): 230mA
  • Horizontal View Angle: 120 Degrees
  • Unobstructed Effective Range: 200-300 Feet
  • Dimensions (W x D x H): 3.75 x 2 x 2.5 inches (excluding bracket)
  • Weight: 15.5 oz
  • Operating Temperature: -30°F/150°F
  • Operating Humidity: 85% RH

Power Cable Lengths of LCD's and Cameras:

  • Length of cable between LCD to power source:  14" & 1/2 fixed cable
  • Does this product grid lines: yes
  • 75" 12 volt DC charger included
  • Length of power cable camera: 16" fixed cable, 76" hardwire power cable

Monitor/Receiver Specs:

  • LCD Resolution: 1024 x 600 pixels
  • Receiving Frequency: ISM Digital
  • Intermediate Frequency: 480 MHz
  • Demodulation Type: FM
  • Antenna: 50 ohm SMA
  • Receiving Sensitivity: <= -85 dBm
  • Video Output Signal Level: 1 .1 V +/- 0.2V~ @75ohm, S/N>38dB
  • Power Supply: + 12/36 V DC
  • Consumption Current (Max.): 600mA
  • Unobstructed Effective Range: 200-250 Feet
  • Dimensions (W x D x H): 8.5 x 1 x 6 inches
  • Weight: 14 oz (excluding bracket)
  • Operating Temperature: -10°C/+50°C or+14°F/122°F
  • Operating Humidity: 85% RH
How to Wire and Power Your Device

    What's In The Box Video

    • Digital Wireless IP68 Heavy Duty Bracket CCD Camera
    • Digital 7” TFT-LCD Monitor w/ built-in digital receiver & sun shield
    • Cigarette Lighter power adapter for monitor
    • 12V Additional monitor power cable for monitor (if you wish to hardwire)
    • Dash Mount Holder for LCD
    • Video cable, screws, wire connectors
    • User manual

    NEED ACCESSORIES FOR THIS CAMERA SYSTEM?  CLICK HERE.

    • Magnet Mount for Camera: Magnet Mount allows for 1 minute installation & allows for each removal and install if you change trailers often. Click HERE
    • Rechargeable Weatherproof Battery: If you do not want to connect the wireless camera to a 12v power source, you can add this 10 hr battery, which makes installation take less than 1 min. Click HERE



      Product Disclaimer: This system is designed to be an aid and should not replace the need to drive carefully. Under no circumstances will manufacturer, supplier or retailer accept any responsibility or cannot be held liable for any direct or indirect, incidental or consequential damage or for injuries results from installing or using this system or from any backing accident.

      Customer Products and Reviews

      Based on 50 reviews Write a review
      truckFast & Free Shipping

      FREE USPS 1-5 Day Shipping in USA & orders ship same day (by 2:00 PM CST MON-FRI)

      bagBuy Now, Pay Later

      Financed offered by Bread, with multiple financing options that can fit most budgets & credit scores.

      noiAmazing Support

      Offering the best pre and post-sale support! Call us, we answer, we are from Texas! 833-379-6600

      Customer Reviews

      Based on 48 reviews
      92%
      (44)
      4%
      (2)
      0%
      (0)
      4%
      (2)
      0%
      (0)
      R
      Rob
      2ed gen wireless cam

      1 cam setup, easy to install n hook up. Clear pic on the screen.

      A
      A.H.

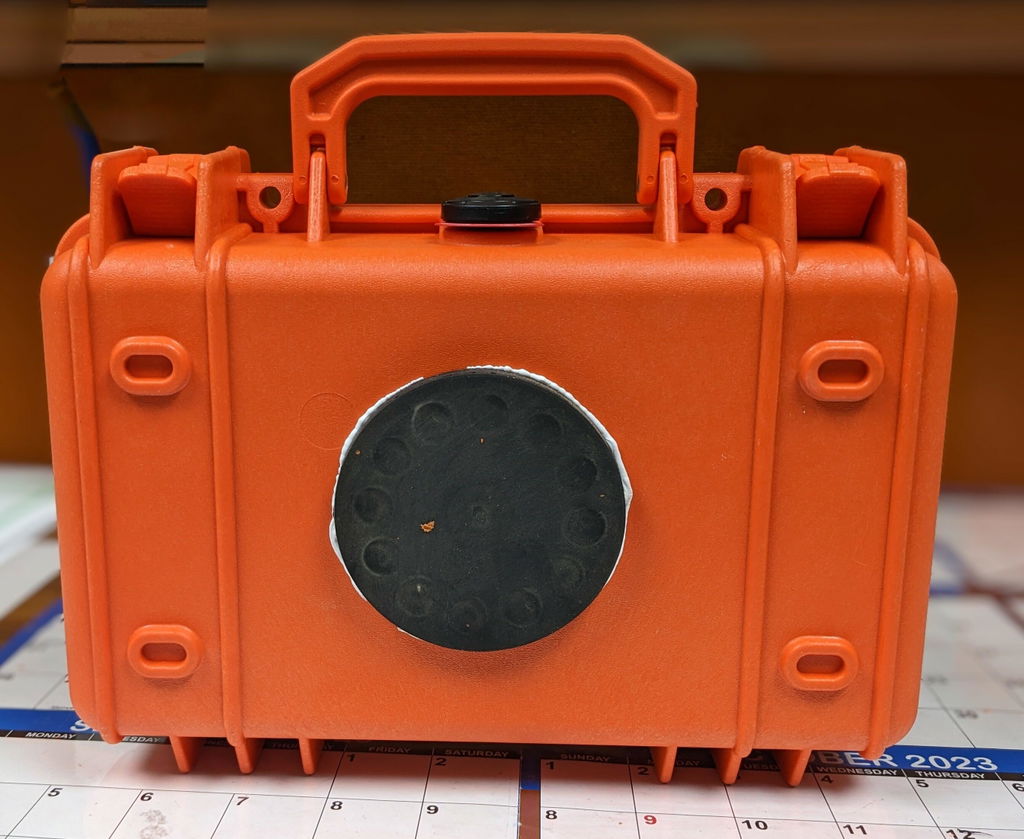

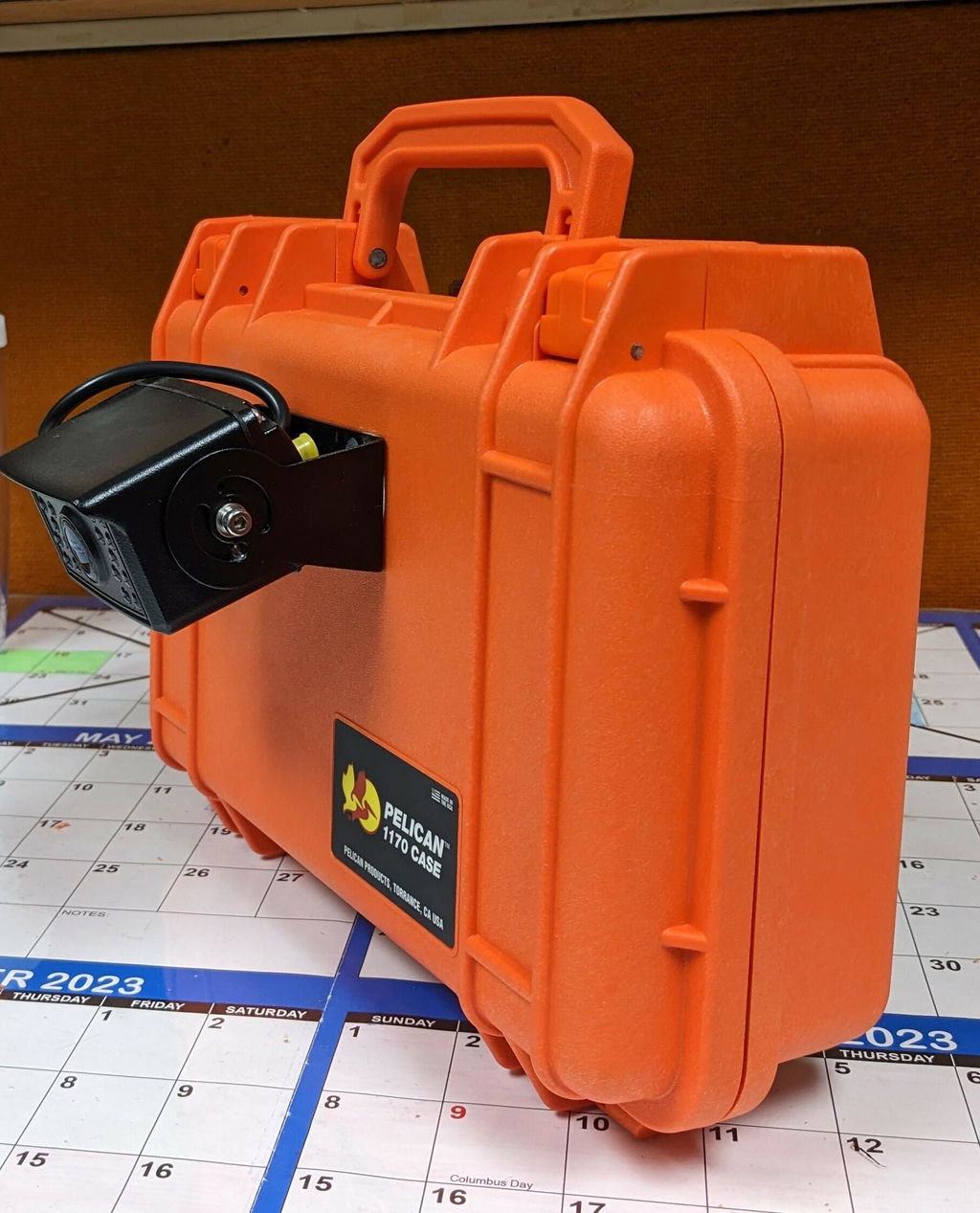

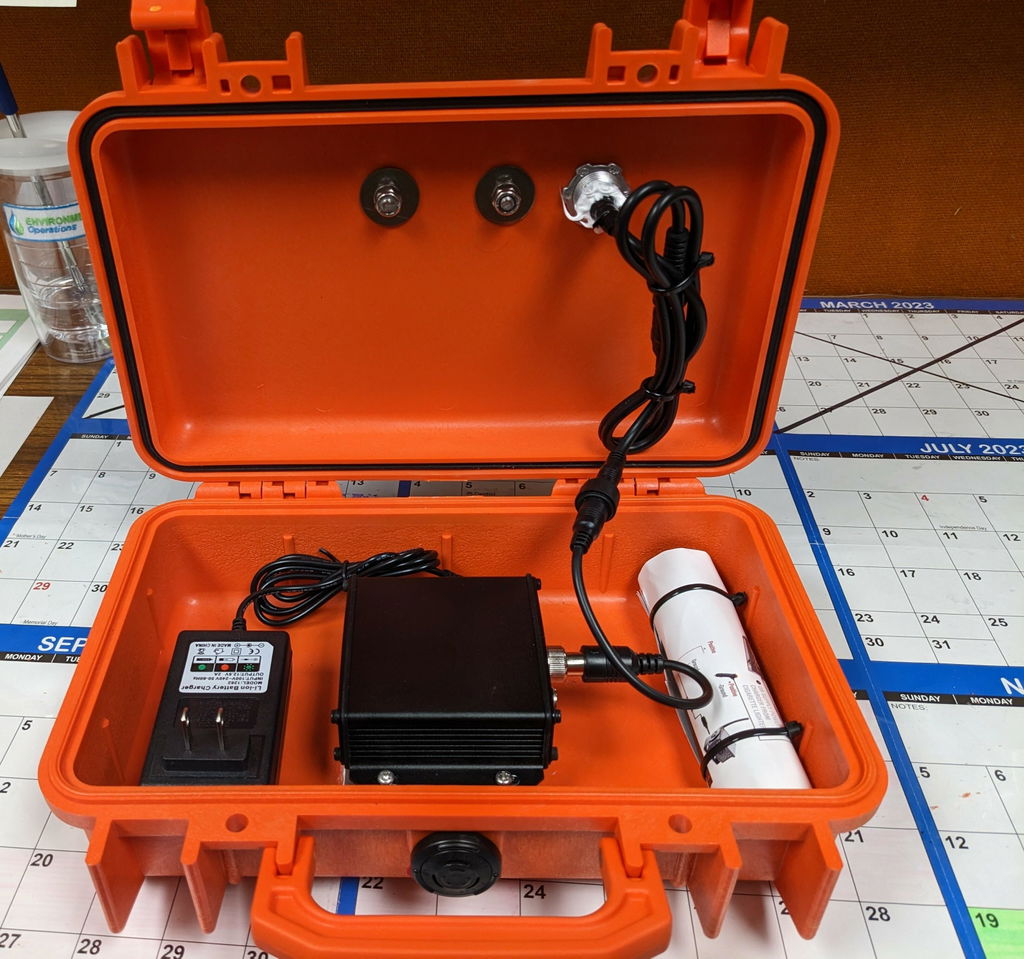

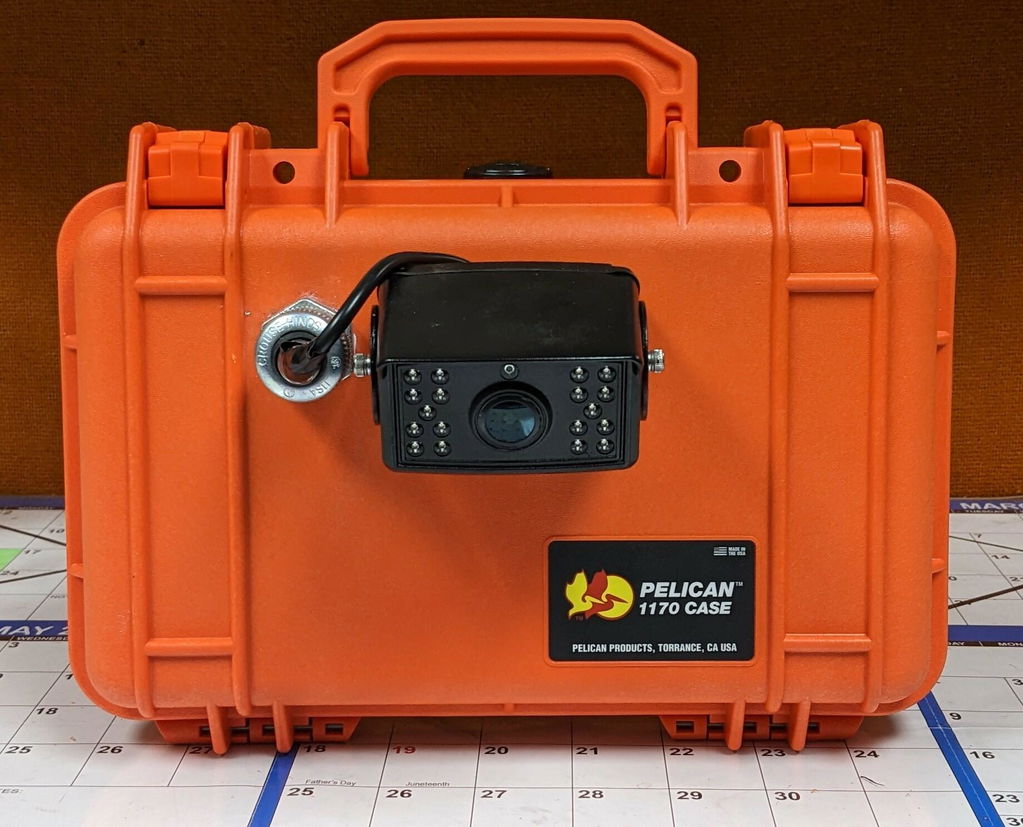

      Converted into a portable camera

      I purchased this camera with the intention of turning it into a portable unit. The camera seamlessly integrated into the Pelican box and will serve us admirably. The video feed signal is strong, and the picture quality is excellent.

      S
      Scott O
      Works like a charm

      Works like a charm, can see what is going on in the feed trailer, great pic. had another wireless cam that did not have the range of this one! i just bought my 2nd unit!

      S
      Scott O
      Worked like a charm

      the 1 setup I got worked like a charm on my field semi, for chopping silage. Great pic quality, buying another system today

      b
      b.p.
      Simple installation

      the installation was simple, the view around the motorhome was WONDERFUL, having 4 allows us to see all around the coach, including at the front bumper which is not visable from the driver's seat, thanks
